Sketchy bounding marks around point groups

Draw a hand-drawn bounding shape around each group of points - the sketch analogues of ggforce::geom_mark_circle() / geom_mark_ellipse() / geom_mark_rect(), completing the family started by geom_sketch_mark_hull(). Group the points with an aesthetic such as group, colour, or fill; each group gets its own mark. With fill mapped the mark is shaded (using fill_style); otherwise it is outline-only. The position scales expand to contain the marks, so they are not clipped.

Usage

GeomSketchMarkCircle

GeomSketchMarkEllipse

GeomSketchMarkRect

geom_sketch_mark_circle(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  expand = 0.05,
  roughness = 1,
  bowing = 1,
  n_passes = 2L,
  seed = NULL,
  fill_style = "hachure",
  hachure_angle = 45,
  hachure_gap = 0.07,
  fill_weight = 0.5,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

geom_sketch_mark_ellipse(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  expand = 0.05,
  roughness = 1,
  bowing = 1,
  n_passes = 2L,
  seed = NULL,
  fill_style = "hachure",
  hachure_angle = 45,
  hachure_gap = 0.07,
  fill_weight = 0.5,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

geom_sketch_mark_rect(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  expand = 0.05,
  roughness = 1,
  bowing = 1,
  n_passes = 2L,
  seed = NULL,
  fill_style = "hachure",
  hachure_angle = 45,
  hachure_gap = 0.07,
  fill_weight = 0.5,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Aesthetic mappings created by ggplot2::aes(). Requires x and y; map group/colour/fill to separate the clusters.

data

Data to display.

stat

Statistical transformation. Default "identity".

position

Position adjustment. Default "identity".

...

Other arguments passed on to the layer.

expand

Fractional outward inflation of the mark, so it sits around the points rather than through them. Default 0.05.

roughness

Non-negative roughness (0 = clean). Default 1.

bowing

Non-negative bowing multiplier. Default 1.

n_passes

Number of stroke passes. Default 2.

seed

Integer seed. NULL uses getOption("ggsketch.seed", 1L).

fill_style

Fill style when fill is mapped: "hachure", "cross_hatch", "zigzag", "scribble", "dots", "dashed", "stipple", "pencil_shade", or "solid". Default "hachure".

hachure_angle

Fill line angle in degrees. Default 45.

hachure_gap

Fill line gap (npc fraction). Default 0.07.

fill_weight

Stroke weight for fill lines. Default 0.5.

na.rm

Remove missing values silently? Default FALSE.

show.legend

Logical; include in legend?

inherit.aes

Override default aesthetics?

Value

A ggplot2 layer object.

Details

The boundary is computed in data units, so a geom_sketch_mark_circle() is a true circle only under ggplot2::coord_equal() (as for geom_sketch_circle()); on a non-square panel prefer geom_sketch_mark_ellipse().

See also

Other sketch-geoms: GeomSketchAbline, GeomSketchArrow, GeomSketchBoxplot, GeomSketchBracket, GeomSketchCallout, GeomSketchChicklet, GeomSketchCol, GeomSketchContourFilled, GeomSketchCurve, GeomSketchDotplot, GeomSketchDumbbell, GeomSketchEdge, GeomSketchEllipse, GeomSketchEngrave, GeomSketchGantt, GeomSketchHex, GeomSketchLine, GeomSketchLinerange, GeomSketchLollipop, GeomSketchMarkHull, GeomSketchPath, GeomSketchPoint, GeomSketchPolygon, GeomSketchRect, GeomSketchRibbon, GeomSketchRug, GeomSketchSegment, GeomSketchSfPolygon, GeomSketchSlope, GeomSketchSmooth, GeomSketchSpoke, GeomSketchTextRepel, GeomSketchViolin, StatSketchBeeswarm, StatSketchCalendar, StatSketchDensityRidges, StatSketchFunnel, StatSketchPie, StatSketchPyramid, StatSketchRadar, StatSketchStream, StatSketchTreemap, StatSketchWaffle, StatSketchWaterfall, annotate_sketch(), annotate_sketch_arrow(), annotate_sketch_callout(), annotate_sketch_highlight(), geom_sketch_alluvial(), geom_sketch_arc_diagram(), geom_sketch_bin2d(), geom_sketch_bump(), geom_sketch_chord(), geom_sketch_contour(), geom_sketch_count(), geom_sketch_dendrogram(), geom_sketch_density(), geom_sketch_density2d(), geom_sketch_ecdf(), geom_sketch_function(), geom_sketch_histogram(), geom_sketch_jitter(), geom_sketch_marimekko(), geom_sketch_mosaic(), geom_sketch_parallel(), geom_sketch_qq(), geom_sketch_quantile(), geom_sketch_rose(), geom_sketch_sunburst(), geom_sketch_text(), sketch_graph()

Examples

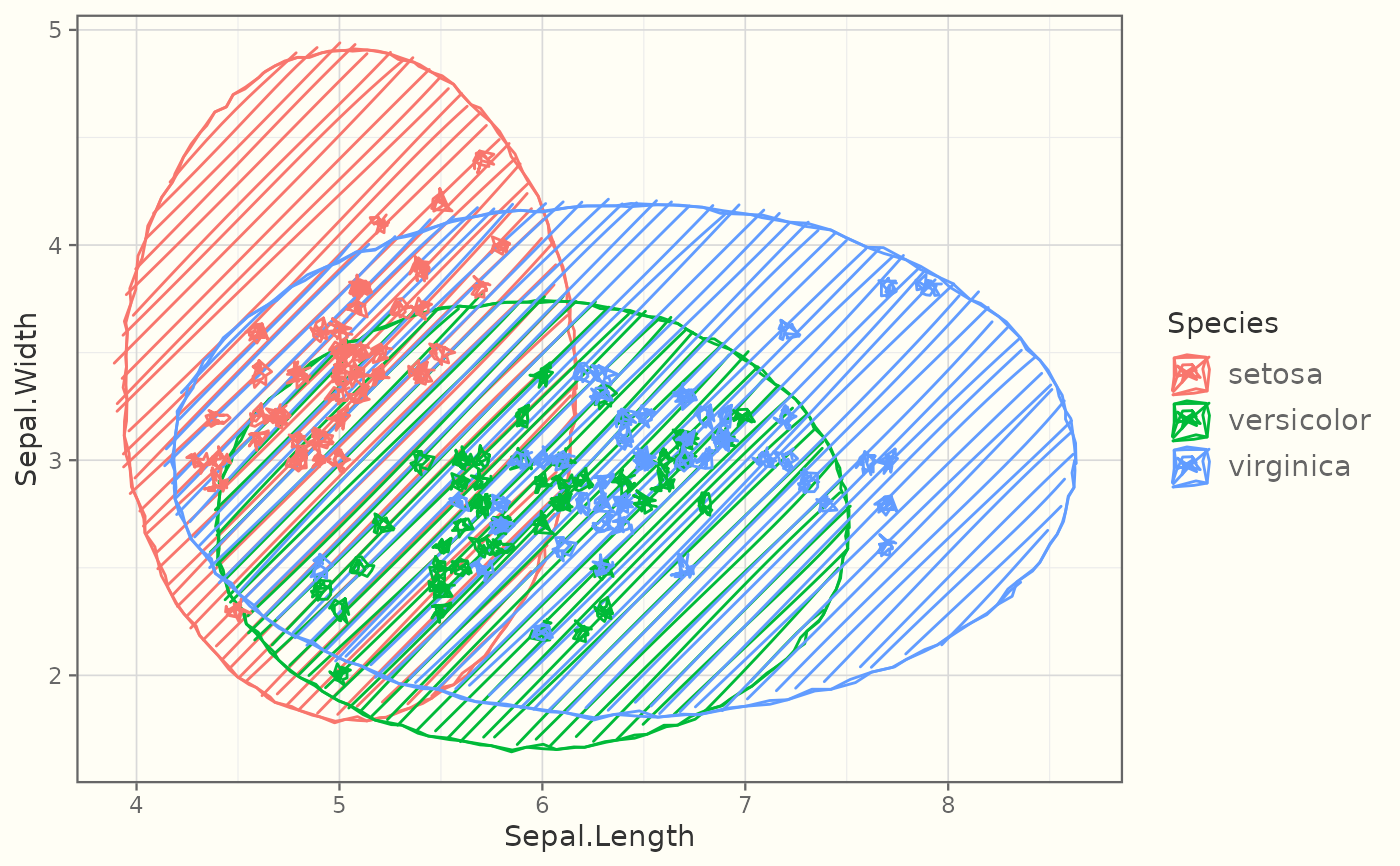

library(ggplot2)
ggplot(iris, aes(Sepal.Length, Sepal.Width, colour = Species)) +
  geom_sketch_mark_ellipse(aes(fill = Species), seed = 1L) +
  geom_sketch_point(seed = 2L) +
  theme_sketch()
