Sketchy contour lines

Source: R/geom-sketch-contour.R
geom_sketch_contour.Rd

geom_sketch_contour() draws contour lines of a 3-D surface with a hand-drawn stroke (the sketch analogue of ggplot2::geom_contour() / ggplot2::stat_contour()); it needs x, y, and z aesthetics. Each contour piece becomes one roughened path.

Usage

geom_sketch_contour(
  mapping = NULL,
  data = NULL,
  stat = "contour",
  position = "identity",
  ...,
  bins = NULL,
  binwidth = NULL,
  breaks = NULL,
  roughness = 0.7,
  bowing = 0.5,
  n_passes = 2L,
  seed = NULL,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings created by ggplot2::aes().

data

Data to display.

stat

Statistical transformation (default "identity").

position

Position adjustment (default "identity").

...

Other arguments passed on to the layer.

bins

Number of contour bins. Overridden by binwidth or breaks.

binwidth

Distance between contour bins.

breaks

Explicit numeric contour breaks; overrides bins/binwidth.

roughness

Non-negative roughness parameter (0 = straight). Default 1.

bowing

Non-negative bowing multiplier. Default 1.

n_passes

Number of stroke passes for the double-stroke effect. Default 2.

seed

Integer seed for reproducibility. NULL uses getOption("ggsketch.seed", 1L).

na.rm

If FALSE (default), missing values are removed with a warning.

show.legend

Logical. Should this layer be included in the legend?

inherit.aes

If FALSE, override the default aesthetics.

Value

A ggplot2 layer object.

See also

Other sketch-geoms: GeomSketchAbline, GeomSketchBoxplot, GeomSketchBracket, GeomSketchCol, GeomSketchCurve, GeomSketchEllipse, GeomSketchHex, GeomSketchLine, GeomSketchLinerange, GeomSketchPath, GeomSketchPoint, GeomSketchPolygon, GeomSketchRect, GeomSketchRibbon, GeomSketchRug, GeomSketchSegment, GeomSketchSmooth, GeomSketchSpoke, GeomSketchViolin, annotate_sketch(), geom_sketch_bin2d(), geom_sketch_count(), geom_sketch_density(), geom_sketch_density2d(), geom_sketch_function(), geom_sketch_histogram(), geom_sketch_jitter(), geom_sketch_qq(), geom_sketch_quantile(), geom_sketch_text()

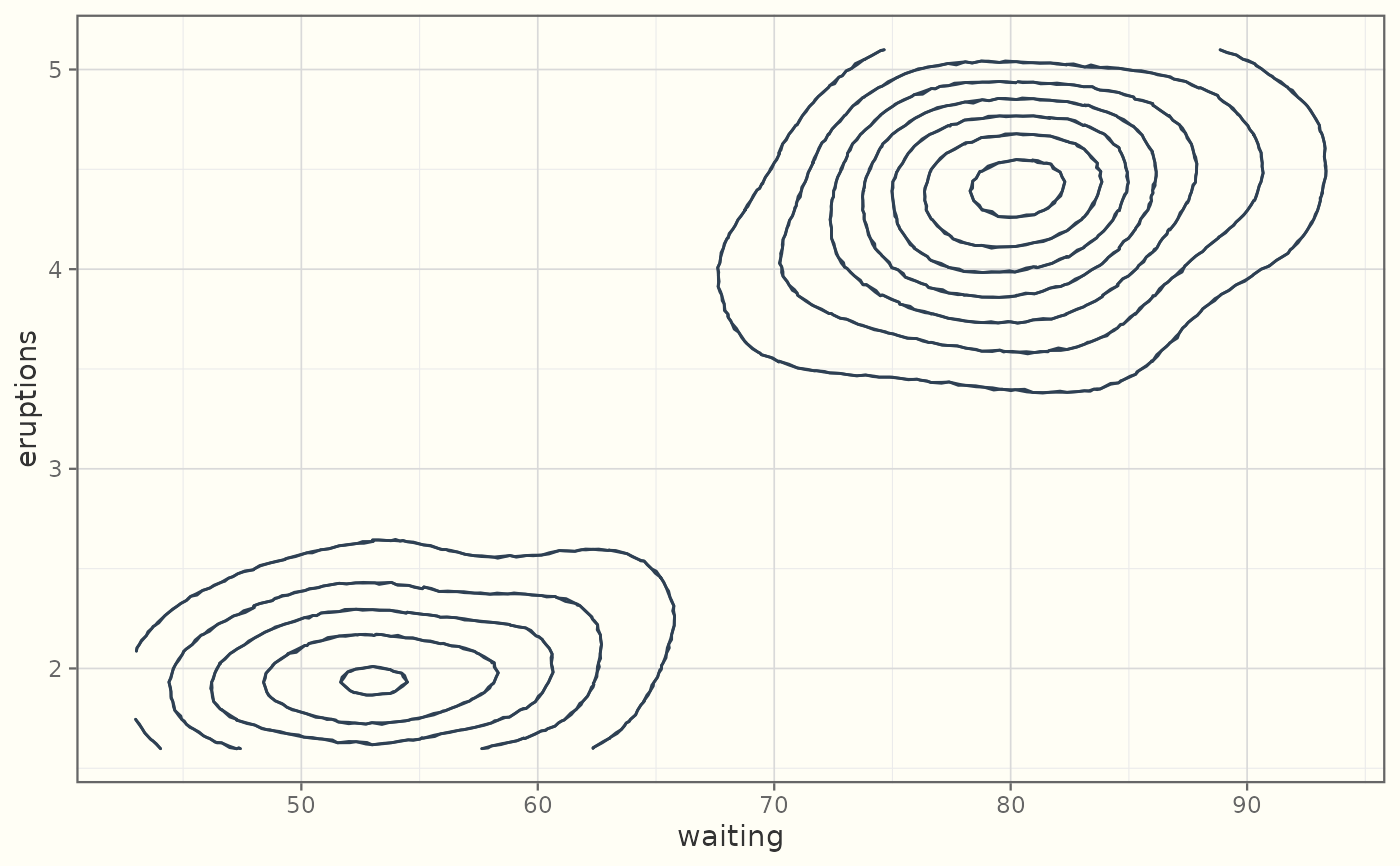

Examples

library(ggplot2)
ggplot(faithfuld, aes(waiting, eruptions, z = density)) +
  geom_sketch_contour(colour = "#2E4053", seed = 1L) +
  theme_sketch()
