Sketchy filled contour and 2-D density bands

Source: R/geom-sketch-contour-filled.R
geom_sketch_contour_filled.Rd

geom_sketch_contour_filled() draws hand-drawn filled contour bands of a surface (the sketch analogue of ggplot2::geom_contour_filled()); it needs x, y, and z. geom_sketch_density_2d_filled() fills the bands of a 2-D kernel density estimate (ggplot2::geom_density_2d_filled()); it needs x and y and uses MASS.

Usage

GeomSketchContourFilled

geom_sketch_contour_filled(
  mapping = NULL,
  data = NULL,
  stat = "contour_filled",
  position = "identity",
  ...,
  bins = NULL,
  binwidth = NULL,
  breaks = NULL,
  roughness = 0.7,
  bowing = 0.5,
  n_passes = 2L,
  seed = NULL,
  fill_style = "solid",
  hachure_angle = 45,
  hachure_gap = 0.04,
  fill_weight = 0.5,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

geom_sketch_density_2d_filled(
  mapping = NULL,
  data = NULL,
  stat = "density_2d_filled",
  position = "identity",
  ...,
  roughness = 0.7,
  bowing = 0.5,
  n_passes = 2L,
  seed = NULL,
  fill_style = "solid",
  hachure_angle = 45,
  hachure_gap = 0.04,
  fill_weight = 0.5,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

geom_sketch_density2d_filled(
  mapping = NULL,
  data = NULL,
  stat = "density_2d_filled",
  position = "identity",
  ...,
  roughness = 0.7,
  bowing = 0.5,
  n_passes = 2L,
  seed = NULL,
  fill_style = "solid",
  hachure_angle = 45,
  hachure_gap = 0.04,
  fill_weight = 0.5,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings created by ggplot2::aes().

data

Data to display.

stat

Statistical transformation (default "identity").

position

Position adjustment (default "identity").

...

Other arguments passed on to the layer.

bins

Number of contour bins. Overridden by binwidth or breaks.

binwidth

Distance between contour bins.

breaks

Explicit numeric contour breaks; overrides bins/binwidth.

roughness

Non-negative roughness parameter (0 = straight). Default 1.

bowing

Non-negative bowing multiplier. Default 1.

n_passes

Number of stroke passes for the double-stroke effect. Default 2.

seed

Integer seed for reproducibility. NULL uses getOption("ggsketch.seed", 1L).

fill_style

Band fill: "solid" (default), "hachure", or "cross_hatch". Other styles degrade to "hachure".

hachure_angle

Fill line angle in degrees. Default 45.

hachure_gap

Fill line gap (npc fraction). Default 0.04.

fill_weight

Stroke weight for fill lines. Default 0.5.

na.rm

If FALSE (default), missing values are removed with a warning.

show.legend

Logical. Should this layer be included in the legend?

inherit.aes

If FALSE, override the default aesthetics.

Value

A ggplot2 layer object.

Details

Unlike the contour line geoms, each band is a region that may contain holes (the next level up, cut out). The fill is painted with a hole-aware scan-line so the holes stay empty, even for fill_style = "hachure".

See also

Other sketch-geoms: GeomSketchAbline, GeomSketchArrow, GeomSketchBoxplot, GeomSketchBracket, GeomSketchCallout, GeomSketchChicklet, GeomSketchCol, GeomSketchCurve, GeomSketchDotplot, GeomSketchDumbbell, GeomSketchEdge, GeomSketchEllipse, GeomSketchEngrave, GeomSketchGantt, GeomSketchHex, GeomSketchLine, GeomSketchLinerange, GeomSketchLollipop, GeomSketchMarkCircle, GeomSketchMarkHull, GeomSketchPath, GeomSketchPoint, GeomSketchPolygon, GeomSketchRect, GeomSketchRibbon, GeomSketchRug, GeomSketchSegment, GeomSketchSfPolygon, GeomSketchSlope, GeomSketchSmooth, GeomSketchSpoke, GeomSketchTextRepel, GeomSketchViolin, StatSketchBeeswarm, StatSketchCalendar, StatSketchDensityRidges, StatSketchFunnel, StatSketchPie, StatSketchPyramid, StatSketchRadar, StatSketchStream, StatSketchTreemap, StatSketchWaffle, StatSketchWaterfall, annotate_sketch(), annotate_sketch_arrow(), annotate_sketch_callout(), annotate_sketch_highlight(), geom_sketch_alluvial(), geom_sketch_arc_diagram(), geom_sketch_bin2d(), geom_sketch_bump(), geom_sketch_chord(), geom_sketch_contour(), geom_sketch_count(), geom_sketch_dendrogram(), geom_sketch_density(), geom_sketch_density2d(), geom_sketch_ecdf(), geom_sketch_function(), geom_sketch_histogram(), geom_sketch_jitter(), geom_sketch_marimekko(), geom_sketch_mosaic(), geom_sketch_parallel(), geom_sketch_qq(), geom_sketch_quantile(), geom_sketch_rose(), geom_sketch_sunburst(), geom_sketch_text(), sketch_graph()

Examples

library(ggplot2)

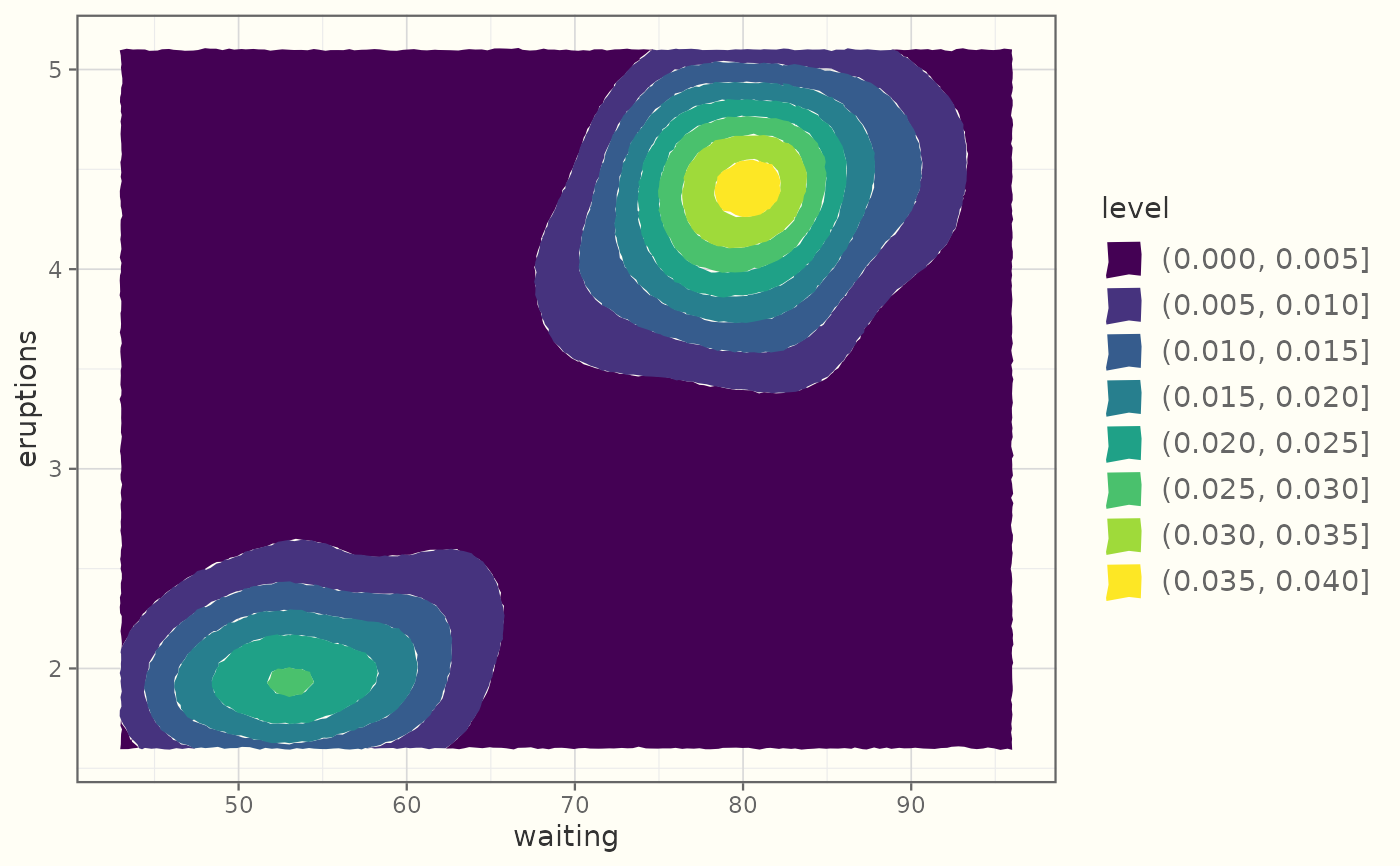

ggplot(faithfuld, aes(waiting, eruptions, z = density)) +
