Sketchy Marimekko (variable-width stacked bar) chart

Draws a hand-drawn Marimekko / Mekko chart: each column's width is one category's (x) share of the total, and within a column the stacked segments are a second category's (fill) shares, so every roughened tile's area is the joint value. It is the value-weighted, segment-coloured cousin of geom_sketch_mosaic() (and reuses its layout). Like geom_sketch_chord() it is a constructor returning a list of ordinary sketch layers (tiles coloured by fill, column labels, and optional width-percent labels), so it composes with + and any fill scale; pair it with theme_void() or theme_sketch().

Usage

geom_sketch_marimekko(
  data,
  x,
  fill,
  value,
  ...,
  gap = 0.008,
  fill_style = "solid",
  alpha = 1,
  colour = "grey30",
  label = TRUE,
  width_labels = TRUE,
  label_size = 3.2,
  label_colour = "grey20",
  roughness = 1,
  bowing = 1,
  n_passes = 2L,
  seed = NULL
)

Arguments

data

A data frame.

x

Unquoted column name of the category that sets column widths.

fill

Unquoted column name of the category stacked within each column.

value

Unquoted column name giving the weight. Default: every row counts as 1.

...

Other arguments passed on to the tile layer.

gap

Gap between columns / segments, as a fraction of the unit square. Default 0.008 (Marimekko charts sit closer than mosaics).

fill_style

Tile fill style; see geom_sketch_rect(). Default "solid".

alpha

Tile fill opacity. Default 1.

colour

Tile outline colour. Default "grey30".

label

Draw column (x) labels under the chart? Default TRUE.

width_labels

Draw each column's width percentage on top? Default TRUE.

label_size, label_colour

Label text controls.

roughness, bowing, n_passes, seed

Sketch parameters.

Value

A list of ggplot2 layers.

See also

Other sketch-geoms: GeomSketchAbline, GeomSketchArrow, GeomSketchBoxplot, GeomSketchBracket, GeomSketchCallout, GeomSketchChicklet, GeomSketchCol, GeomSketchContourFilled, GeomSketchCurve, GeomSketchDotplot, GeomSketchDumbbell, GeomSketchEdge, GeomSketchEllipse, GeomSketchEngrave, GeomSketchGantt, GeomSketchHex, GeomSketchLine, GeomSketchLinerange, GeomSketchLollipop, GeomSketchMarkCircle, GeomSketchMarkHull, GeomSketchPath, GeomSketchPoint, GeomSketchPolygon, GeomSketchRect, GeomSketchRibbon, GeomSketchRug, GeomSketchSegment, GeomSketchSfPolygon, GeomSketchSlope, GeomSketchSmooth, GeomSketchSpoke, GeomSketchTextRepel, GeomSketchViolin, StatSketchBeeswarm, StatSketchCalendar, StatSketchDensityRidges, StatSketchFunnel, StatSketchPie, StatSketchPyramid, StatSketchRadar, StatSketchStream, StatSketchTreemap, StatSketchWaffle, StatSketchWaterfall, annotate_sketch(), annotate_sketch_arrow(), annotate_sketch_callout(), annotate_sketch_highlight(), geom_sketch_alluvial(), geom_sketch_arc_diagram(), geom_sketch_bin2d(), geom_sketch_bump(), geom_sketch_chord(), geom_sketch_contour(), geom_sketch_count(), geom_sketch_dendrogram(), geom_sketch_density(), geom_sketch_density2d(), geom_sketch_ecdf(), geom_sketch_function(), geom_sketch_histogram(), geom_sketch_jitter(), geom_sketch_mosaic(), geom_sketch_parallel(), geom_sketch_qq(), geom_sketch_quantile(), geom_sketch_rose(), geom_sketch_sunburst(), geom_sketch_text(), sketch_graph()

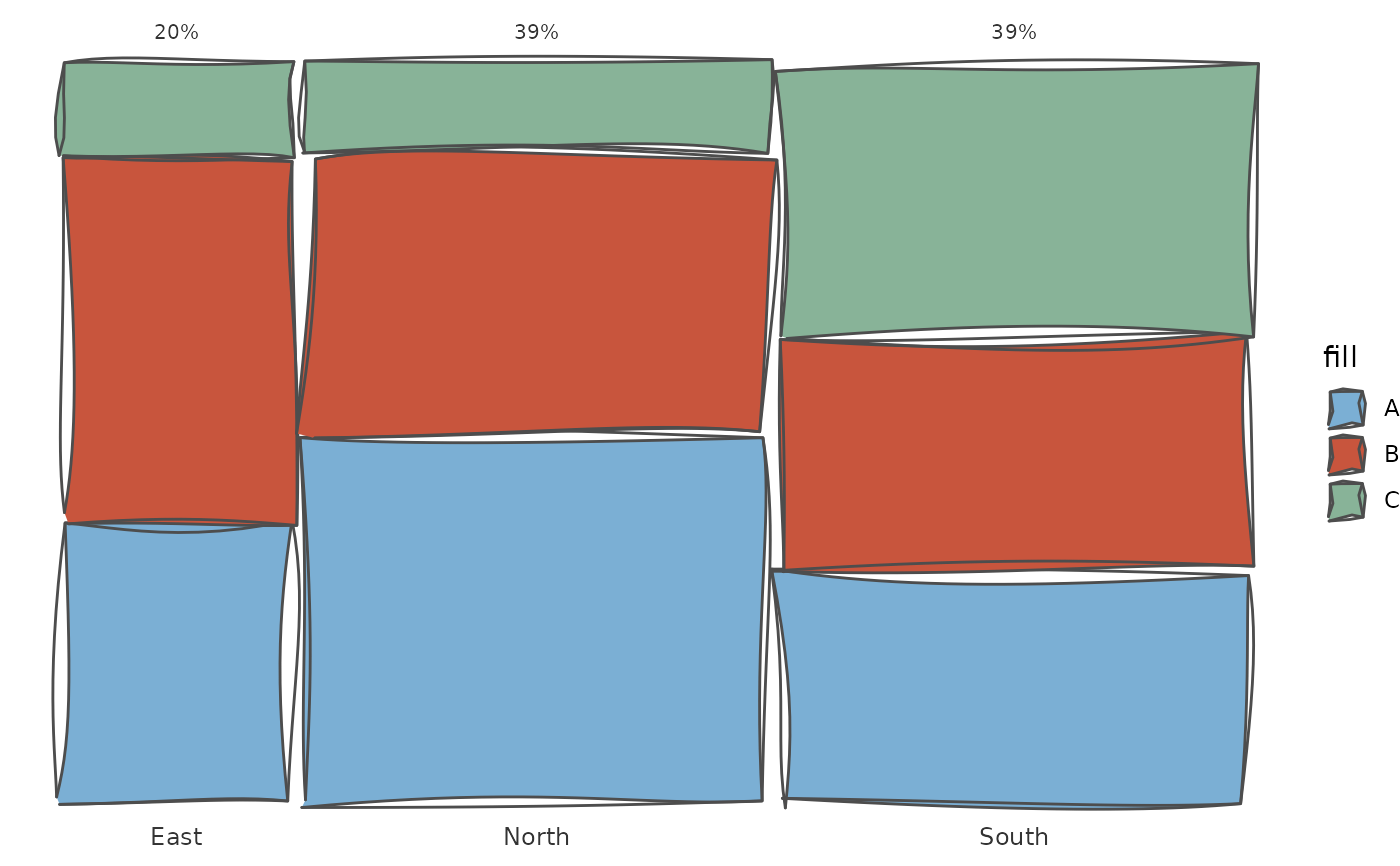

Examples

library(ggplot2)
sales <- data.frame(
  region  = rep(c("North", "South", "East"), each = 3),
  product = rep(c("A", "B", "C"), times = 3),
  revenue = c(40, 30, 10,  25, 25, 30,  15, 20, 5)
)
ggplot() +
  geom_sketch_marimekko(sales, region, product, revenue, seed = 1L) +
  scale_fill_sketch() +
  theme_void()
