Add a one-off sketchy callout annotation

Source: R/geom-sketch-callout.R
annotate_sketch_callout.Rd

The easiest way to add a boxed note: a single hand-drawn callout (with an optional leader arrow) that does not inherit the plot's aesthetics. A thin wrapper around geom_sketch_callout() in the spirit of ggplot2::annotate().

Usage

annotate_sketch_callout(
  x,
  y,
  label,
  xend = NULL,
  yend = NULL,
  seed = NULL,
  ...
)

Arguments

x, y

Box position. Numeric, recycled.

label

Label text.

xend, yend

Optional target the leader points at. NULL (default) draws a boxed label with no leader.

seed

Passed to geom_sketch_callout().

...

Other arguments passed on to geom_sketch_callout() (e.g. colour, fill, roughness, corner_radius, family).

Value

A ggplot2 layer object.

See also

Other sketch-geoms: GeomSketchAbline, GeomSketchArrow, GeomSketchBoxplot, GeomSketchBracket, GeomSketchCallout, GeomSketchChicklet, GeomSketchCol, GeomSketchContourFilled, GeomSketchCurve, GeomSketchDotplot, GeomSketchDumbbell, GeomSketchEdge, GeomSketchEllipse, GeomSketchEngrave, GeomSketchGantt, GeomSketchHex, GeomSketchLine, GeomSketchLinerange, GeomSketchLollipop, GeomSketchMarkCircle, GeomSketchMarkHull, GeomSketchPath, GeomSketchPoint, GeomSketchPolygon, GeomSketchRect, GeomSketchRibbon, GeomSketchRug, GeomSketchSegment, GeomSketchSfPolygon, GeomSketchSlope, GeomSketchSmooth, GeomSketchSpoke, GeomSketchTextRepel, GeomSketchViolin, StatSketchBeeswarm, StatSketchCalendar, StatSketchDensityRidges, StatSketchFunnel, StatSketchPie, StatSketchPyramid, StatSketchRadar, StatSketchStream, StatSketchTreemap, StatSketchWaffle, StatSketchWaterfall, annotate_sketch(), annotate_sketch_arrow(), annotate_sketch_highlight(), geom_sketch_alluvial(), geom_sketch_arc_diagram(), geom_sketch_bin2d(), geom_sketch_bump(), geom_sketch_chord(), geom_sketch_contour(), geom_sketch_count(), geom_sketch_dendrogram(), geom_sketch_density(), geom_sketch_density2d(), geom_sketch_ecdf(), geom_sketch_function(), geom_sketch_histogram(), geom_sketch_jitter(), geom_sketch_marimekko(), geom_sketch_mosaic(), geom_sketch_parallel(), geom_sketch_qq(), geom_sketch_quantile(), geom_sketch_rose(), geom_sketch_sunburst(), geom_sketch_text(), sketch_graph()

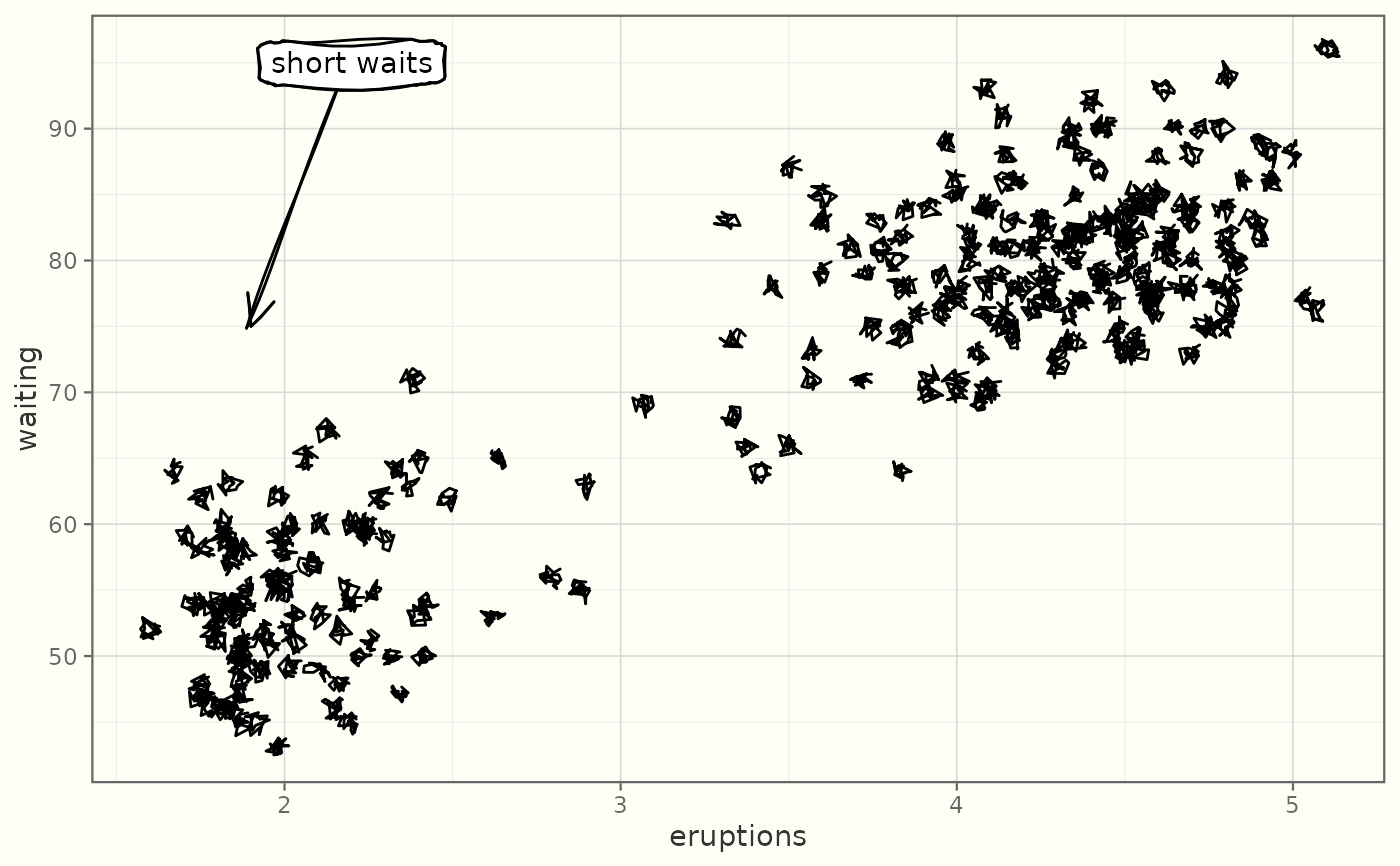

Examples

library(ggplot2)
ggplot(faithful, aes(eruptions, waiting)) +
  geom_sketch_point(seed = 1L) +
  annotate_sketch_callout(x = 2.2, y = 95, label = "short waits",
                          xend = 1.9, yend = 75, seed = 3L) +
  theme_sketch()
