ggsketch is built in three strictly separated layers. Keeping them apart is what makes the package testable, device-independent, and reproducible.

Layer 1 — pure geometry

The core-* functions map numbers to numbers. They take coordinates and sketch parameters and return roughened coordinates — no grid, no ggplot2, no drawing. This is where the rough.js algorithms are reimplemented in original R: point roughening, cubic-Bézier sampling, ellipse generation, and an Active-Edge-Table scan-line filler for hachure (including concave polygons).

You can call them directly:

# Two passes of a roughened polyline through three points
passes <- roughen_polyline(x = c(0, 1, 2), y = c(0, 1, 0),
                           roughness = 1, n_passes = 2, seed = 1L)
length(passes)       # one matrix per pass
#> [1] 2
head(passes[[1]])    # x/y coordinates of the first stroke
#>                x           y
#> [1,] -0.01208118 0.002597418
#> [2,]  0.10504600 0.093487679
#> [3,]  0.21350587 0.181953799
#> [4,]  0.31377351 0.267744807
#> [5,]  0.40632397 0.350609732
#> [6,]  0.49163232 0.430297605

# Hachure fill of a unit square: a list of line segments
segs <- hachure_fill(c(0, 1, 1, 0), c(0, 0, 1, 1),
                     hachure_gap = 0.2, hachure_angle = 45, seed = 1L)
length(segs)
#> [1] 6

Because Layer 1 is pure, the package’s primary regression tests are deterministic geometry snapshots — they compare these numbers exactly, which is far more stable than comparing rendered images.

Layer 2 — grid grobs

The *_grob() constructors wrap Layer 1 in grid grobs whose makeContent() method does the drawing. Crucially, roughening happens after converting to absolute device inches:

g <- sketch_path_grob(x = c(0.1, 0.5, 0.9), y = c(0.2, 0.8, 0.5),
                      roughness = 1, seed = 1L)
class(g)
#> [1] "SketchPathGrob" "gTree"          "grob"           "gDesc"

Working in inch space (not data or npc space) means the wobble has a consistent physical scale regardless of the panel’s aspect ratio or the output device — and because makeContent() re-runs on each draw, resizing a plot re-roughens cleanly at the new size instead of stretching a cached path.

Layer 3 — ggproto geoms

The geom_sketch_*() functions are ordinary ggplot2 layers built with the public extension API (ggproto, draw_panel/draw_group, coord$transform, draw_key). That is why they compose with everything in the grammar:

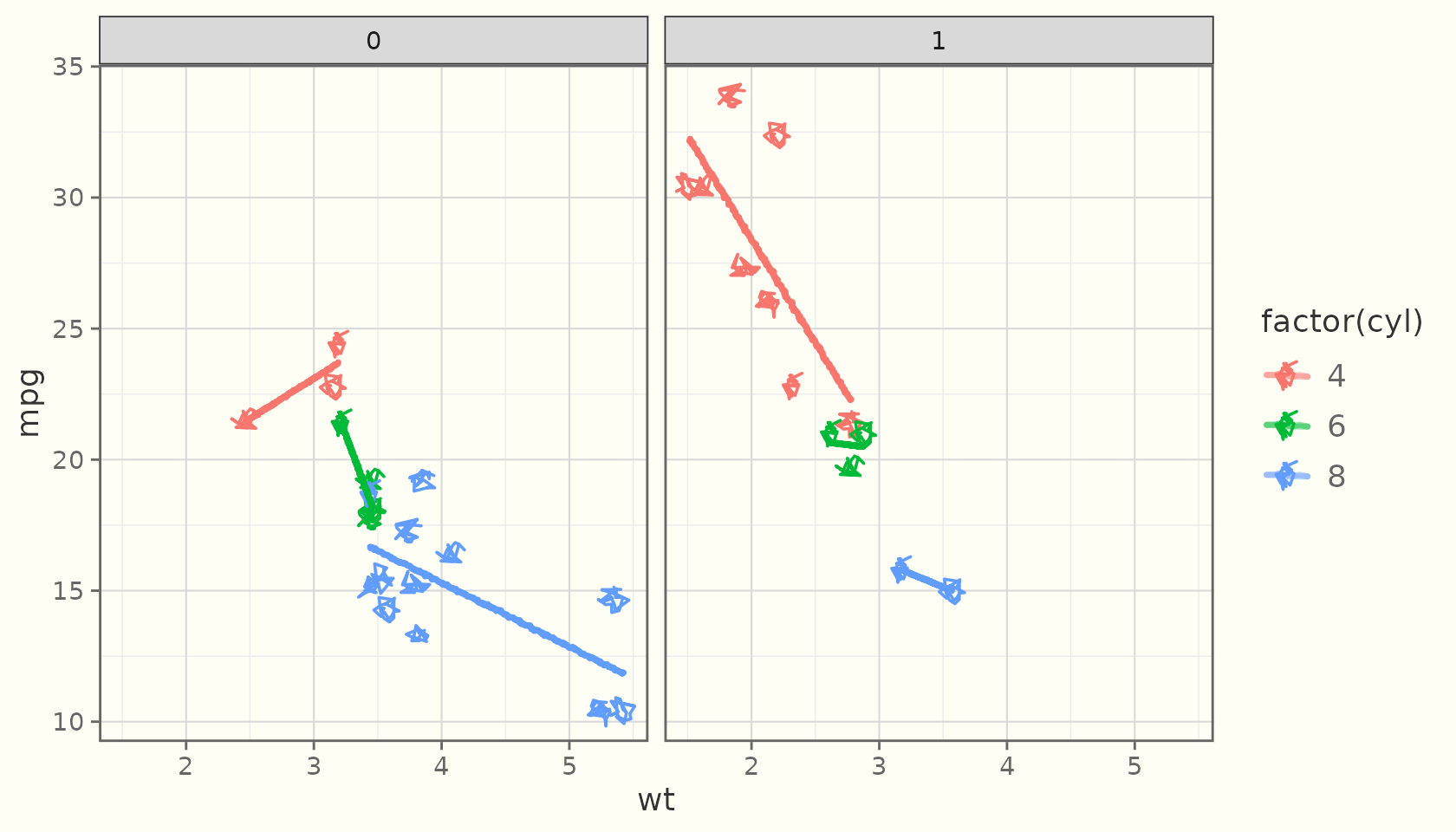

ggplot(mtcars, aes(wt, mpg, colour = factor(cyl))) +
  geom_sketch_point(seed = 1L) +
  geom_sketch_smooth(method = "lm", formula = y ~ x, se = FALSE, seed = 2L) +
  facet_wrap(~am) +
  theme_sketch()

Determinism

Every randomized routine draws from a seeded local RNG stream and restores the global random state afterwards. So sketch plots are reproducible given a seed, and they never disturb set.seed() elsewhere in your code:

set.seed(99)
before <- runif(1)

# draw something sketchy (consumes randomness internally)
invisible(roughen_polyline(c(0, 1), c(0, 1), seed = 1L))

set.seed(99)
after <- runif(1)
identical(before, after)   # TRUE — global RNG untouched
#> [1] TRUE

Credits & non-affiliation

The algorithms are reimplemented in original R from the published descriptions of the rough.js algorithms (Preet Shihn, 2020) and the hachure approach of Wood et al. No rough.js source is vendored, copied, or translated, and no JavaScript ships in the package.

ggsketch is an independent R package reimplementing the hand-drawn sketch aesthetic from first principles. It is not affiliated with, derived from, or endorsed by the rough.js project, ggrough, or any related JavaScript libraries.
