Sketchy dumbbell chart

Source: R/geom-sketch-dumbbell.R
geom_sketch_dumbbell.Rd

Draws a hand-drawn dumbbell: a roughened connector from x to xend on a shared y, capped with a sketch point at each end. Ideal for showing the change or gap between two paired values per category (cf. ggalt::geom_dumbbell()).

Usage

GeomSketchDumbbell

geom_sketch_dumbbell(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  ...,
  colour_x = NULL,
  colour_xend = NULL,
  roughness = 0.6,
  point_roughness = 0.4,
  bowing = 0.4,
  n_passes = 2L,
  seed = NULL,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Aesthetic mappings created by ggplot2::aes(). Requires x, xend and y.

data

Data to display.

stat

Statistical transformation. Default "identity".

position

Position adjustment. Default "identity".

...

Other arguments passed on to the layer.

colour_x

Colour of the dot at x. Default NULL (uses colour).

colour_xend

Colour of the dot at xend. Default NULL (uses colour).

roughness

Connector roughness (0 = straight). Default 0.6.

point_roughness

Roughness of the end dots. Default 0.4.

bowing

Non-negative bowing multiplier. Default 0.4.

n_passes

Number of stroke passes. Default 2.

seed

Integer seed. NULL uses getOption("ggsketch.seed", 1L).

na.rm

Remove missing values silently? Default FALSE.

show.legend

Logical; include in legend?

inherit.aes

Override default aesthetics?

Value

A ggplot2 layer object.

See also

Other sketch-geoms: GeomSketchAbline, GeomSketchArrow, GeomSketchBoxplot, GeomSketchBracket, GeomSketchCallout, GeomSketchChicklet, GeomSketchCol, GeomSketchContourFilled, GeomSketchCurve, GeomSketchDotplot, GeomSketchEdge, GeomSketchEllipse, GeomSketchEngrave, GeomSketchGantt, GeomSketchHex, GeomSketchLine, GeomSketchLinerange, GeomSketchLollipop, GeomSketchMarkCircle, GeomSketchMarkHull, GeomSketchPath, GeomSketchPoint, GeomSketchPolygon, GeomSketchRect, GeomSketchRibbon, GeomSketchRug, GeomSketchSegment, GeomSketchSfPolygon, GeomSketchSlope, GeomSketchSmooth, GeomSketchSpoke, GeomSketchTextRepel, GeomSketchViolin, StatSketchBeeswarm, StatSketchCalendar, StatSketchDensityRidges, StatSketchFunnel, StatSketchPie, StatSketchPyramid, StatSketchRadar, StatSketchStream, StatSketchTreemap, StatSketchWaffle, StatSketchWaterfall, annotate_sketch(), annotate_sketch_arrow(), annotate_sketch_callout(), annotate_sketch_highlight(), geom_sketch_alluvial(), geom_sketch_arc_diagram(), geom_sketch_bin2d(), geom_sketch_bump(), geom_sketch_chord(), geom_sketch_contour(), geom_sketch_count(), geom_sketch_dendrogram(), geom_sketch_density(), geom_sketch_density2d(), geom_sketch_ecdf(), geom_sketch_function(), geom_sketch_histogram(), geom_sketch_jitter(), geom_sketch_marimekko(), geom_sketch_mosaic(), geom_sketch_parallel(), geom_sketch_qq(), geom_sketch_quantile(), geom_sketch_rose(), geom_sketch_sunburst(), geom_sketch_text(), sketch_graph()

Examples

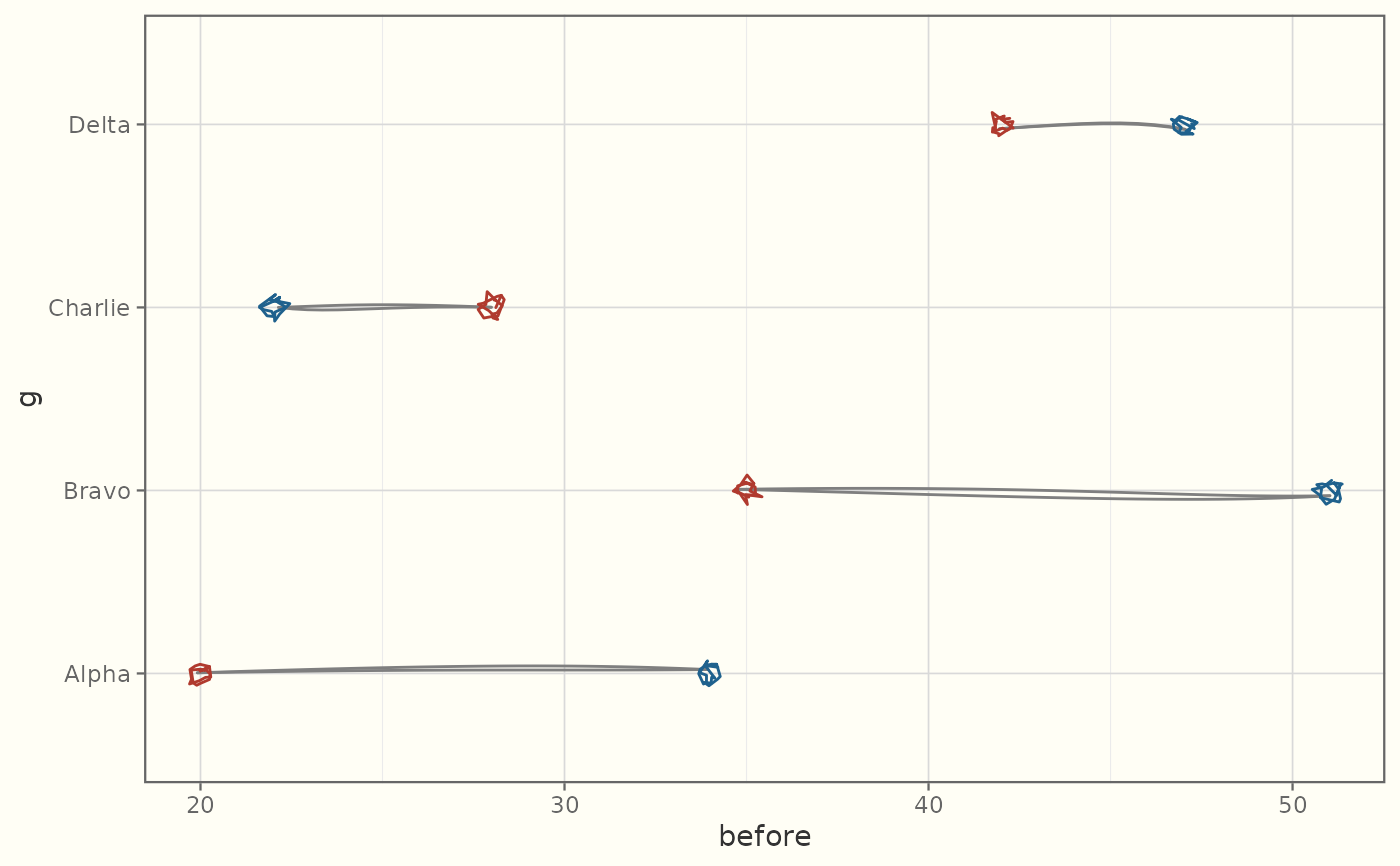

library(ggplot2)
df <- data.frame(g = c("Alpha", "Bravo", "Charlie", "Delta"),
                 before = c(20, 35, 28, 42),
                 after  = c(34, 51, 22, 47))
ggplot(df, aes(x = before, xend = after, y = g)) +
  geom_sketch_dumbbell(colour_x = "#B03A2E", colour_xend = "#1F618D",
                       seed = 1L) +
  theme_sketch()
