A hand-drawn theme for ggplot2

Source: R/theme-sketch.R
theme_sketch.Rd

A sketch-style theme based on ggplot2::theme_bw() with a muted palette to match the rough geoms. Light (default) and dark presets are available via dark. The sketchiness of the marks comes from the geoms themselves; this theme styles the surrounding frame, typography, and background.

Usage

theme_sketch(
  base_size = 11,
  base_family = getOption("ggsketch.base_family", ""),
  base_line_size = base_size/22,
  base_rect_size = base_size/22,
  dark = FALSE,
  rough_frame = FALSE,
  roughness = 0.5,
  paper = "none",
  seed = NULL
)

Arguments

base_size

Base font size (default 11).

base_family

Base font family. Defaults to getOption("ggsketch.base_family", ""); "" uses the device default. "auto" picks the first installed handwriting font (see ggsketch_check_fonts()), falling back to the device default. Set options(ggsketch.base_family = "auto") to make every sketch plot's text (titles, axes, legend) use handwriting, not just the labels drawn by geom_sketch_text() / geom_sketch_bracket(). Or pass an explicit family name.

base_line_size

Line size (default base_size / 22).

base_rect_size

Rect size (default base_size / 22).

dark

If TRUE, use the dark "chalkboard" preset. Default FALSE (light "paper" preset).

rough_frame

If TRUE, draw the frame itself hand-drawn: the major gridlines, panel border, axis ticks, facet strip backgrounds, and the continuous-scale colourbar frame and ticks become roughened sketch grobs (via element_sketch_line() / element_sketch_rect()) so the whole frame matches the marks. Default FALSE.

roughness

Roughness for the rough frame (only used when rough_frame = TRUE). Default 0.5.

paper

Paper ground drawn behind the data: one of sketch_papers() ("none" (default), "notebook", "graph", "dotted", "aged", "blueprint", "chalkboard", "kraft"). A non-"none" paper paints a simulated texture as the panel background, recolours the plot ground and text to suit it (light text on the dark blueprint / chalkboard grounds), and suppresses the default gridlines where the paper supplies its own ruling.

seed

Integer seed for the rough frame, for reproducible wobble. NULL uses getOption("ggsketch.seed", 1L).

Value

A ggplot2::theme object.

See also

Other sketch-theme: CoordSketch, CoordSketchPolar, element_sketch_line(), ggsketch_check_fonts(), ggsketch_save(), register_sketch_font(), scale_pressure_continuous(), scale_roughness_continuous(), scale_sketch, scale_tone_continuous(), sketch_palette()

Examples

library(ggplot2)
p <- ggplot(mtcars, aes(wt, mpg)) + geom_sketch_point(seed = 1L)

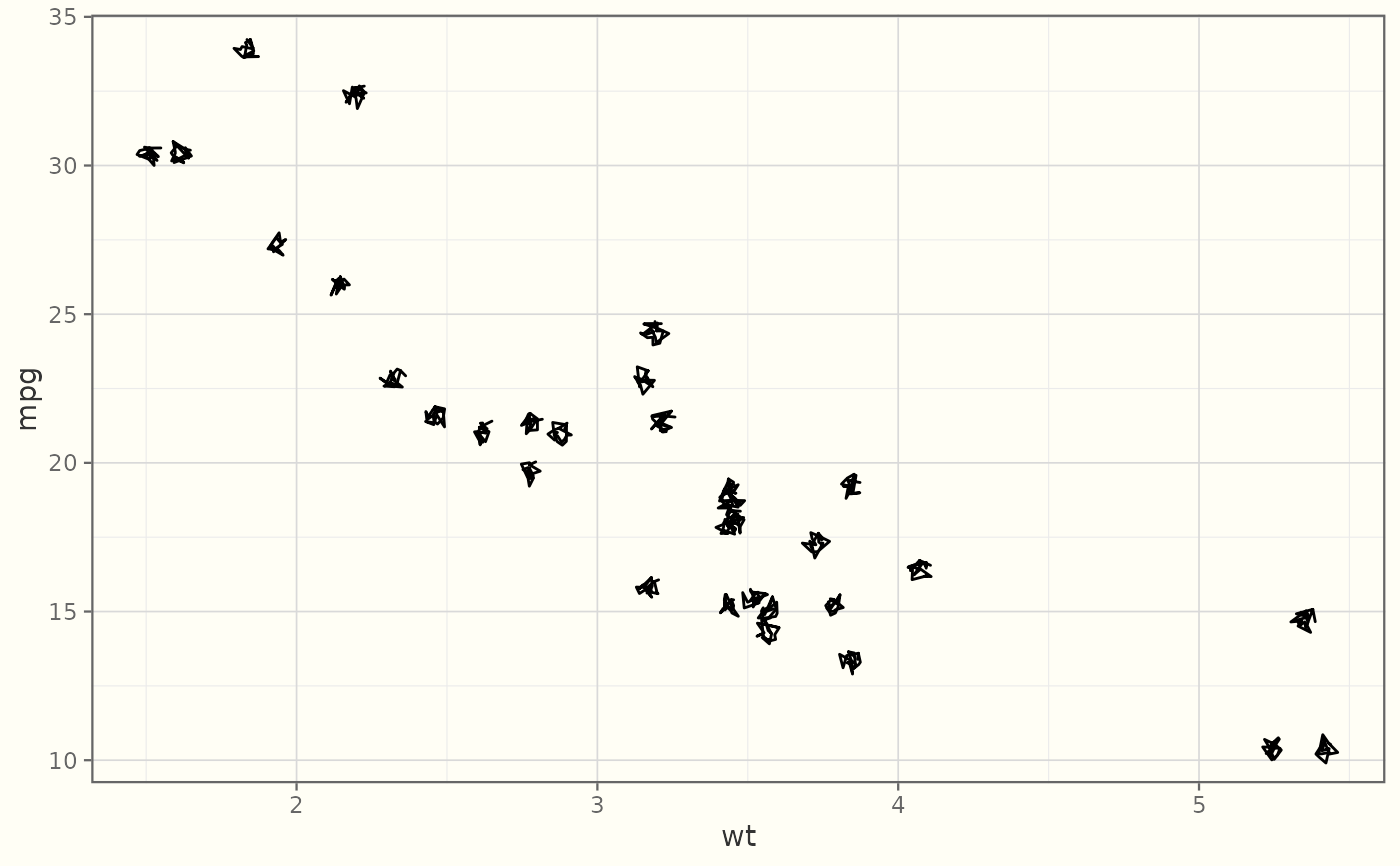

p + theme_sketch()

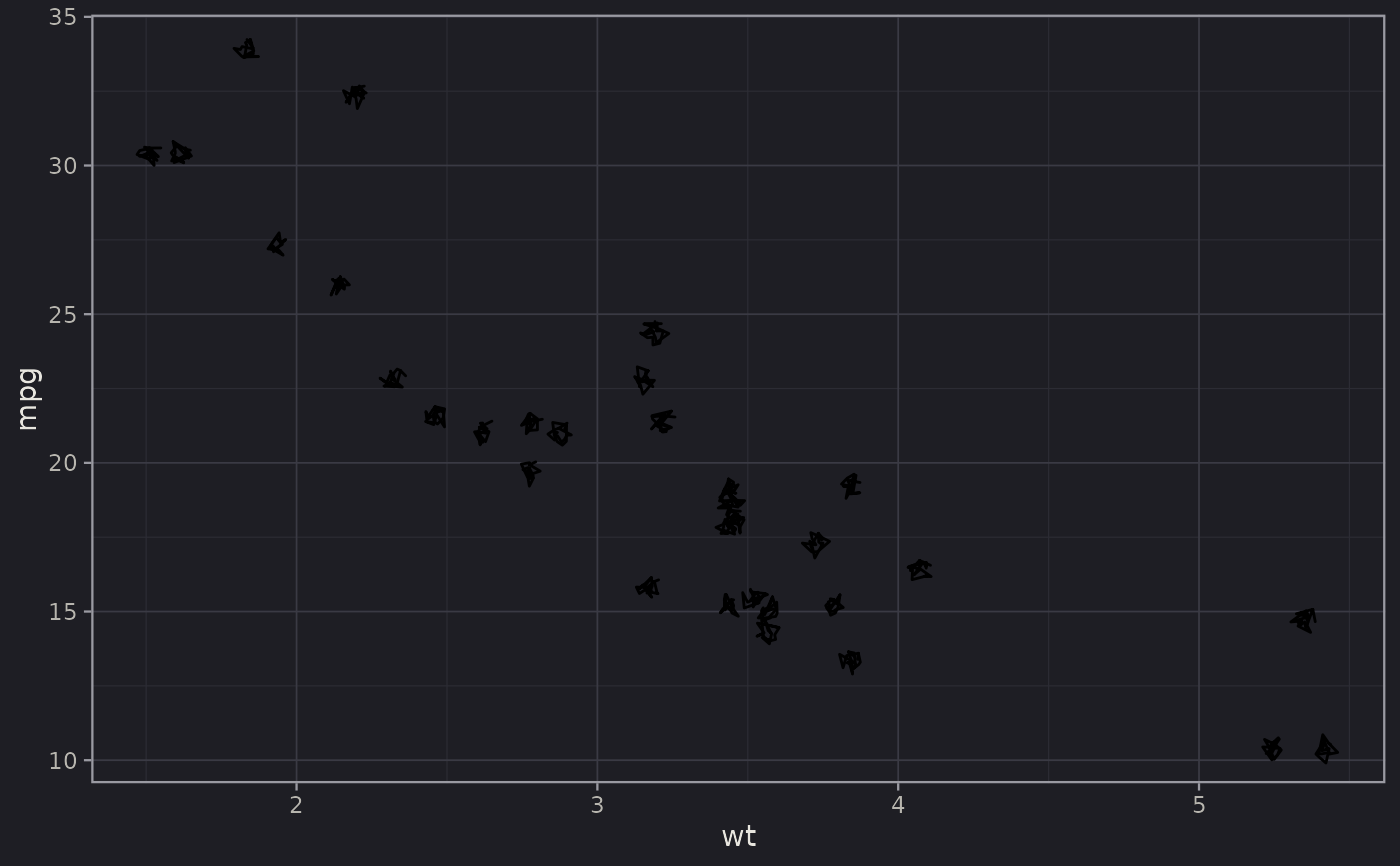

p + theme_sketch(dark = TRUE)

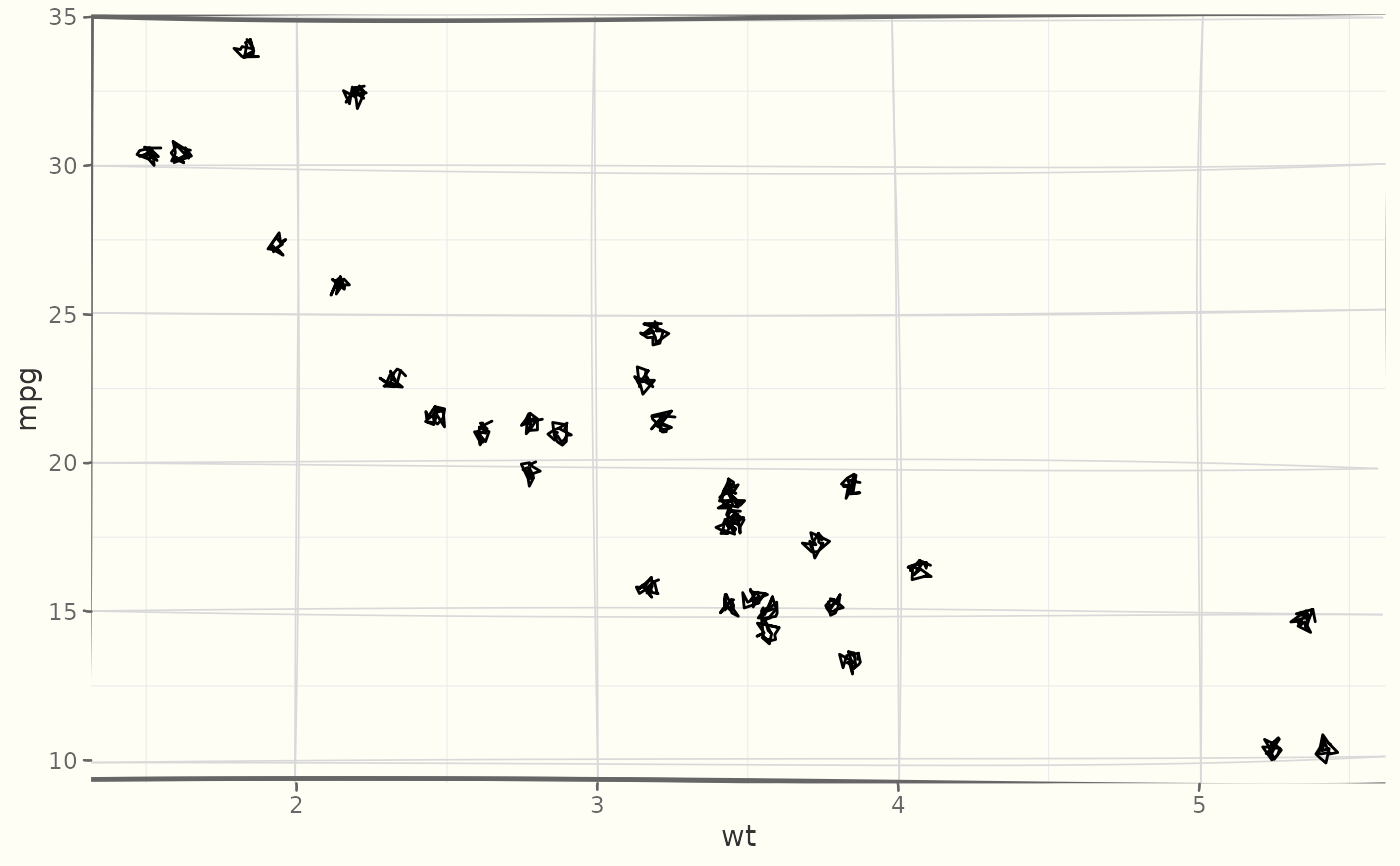

p + theme_sketch(rough_frame = TRUE)

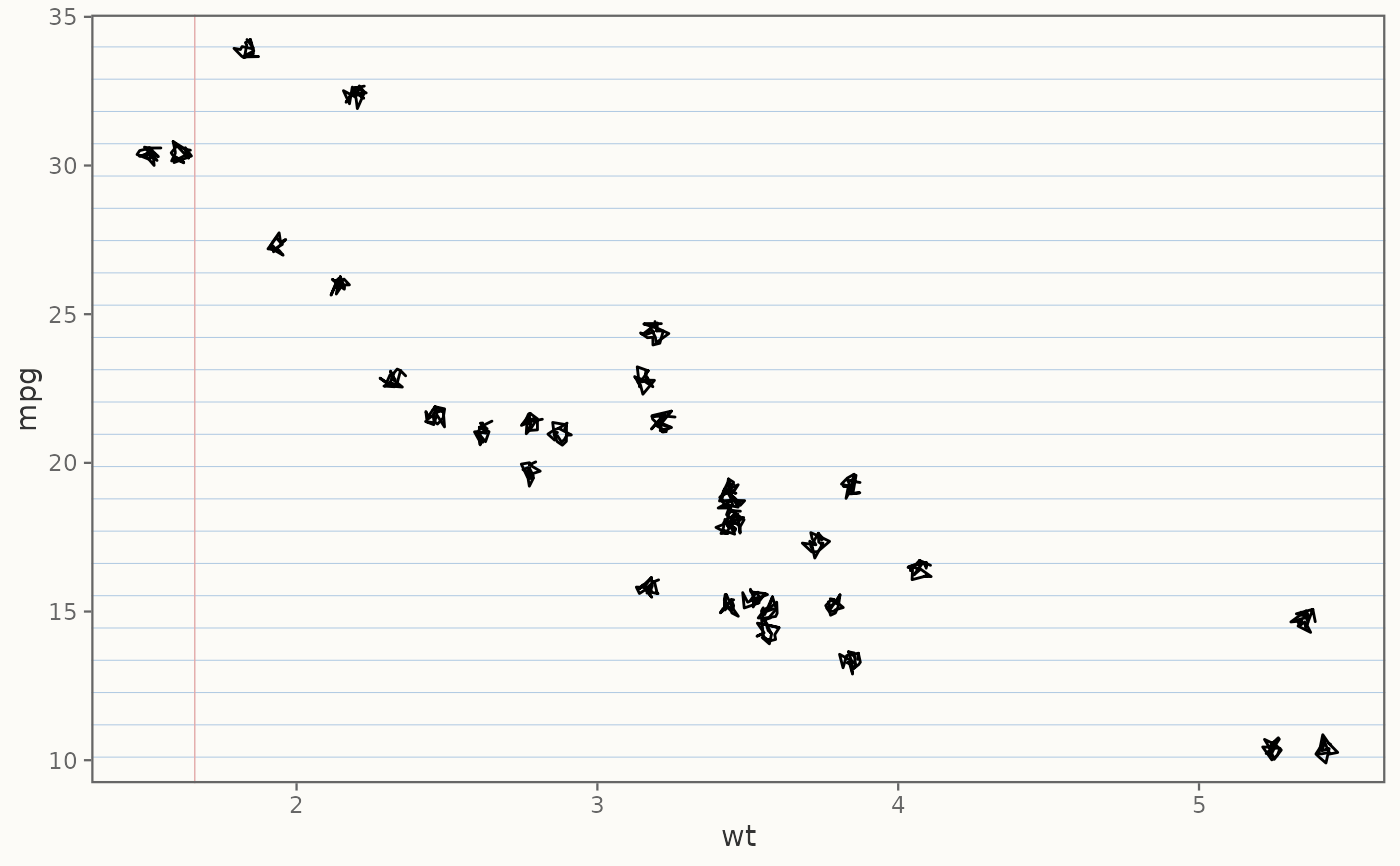

p + theme_sketch(paper = "notebook")
